Syslog

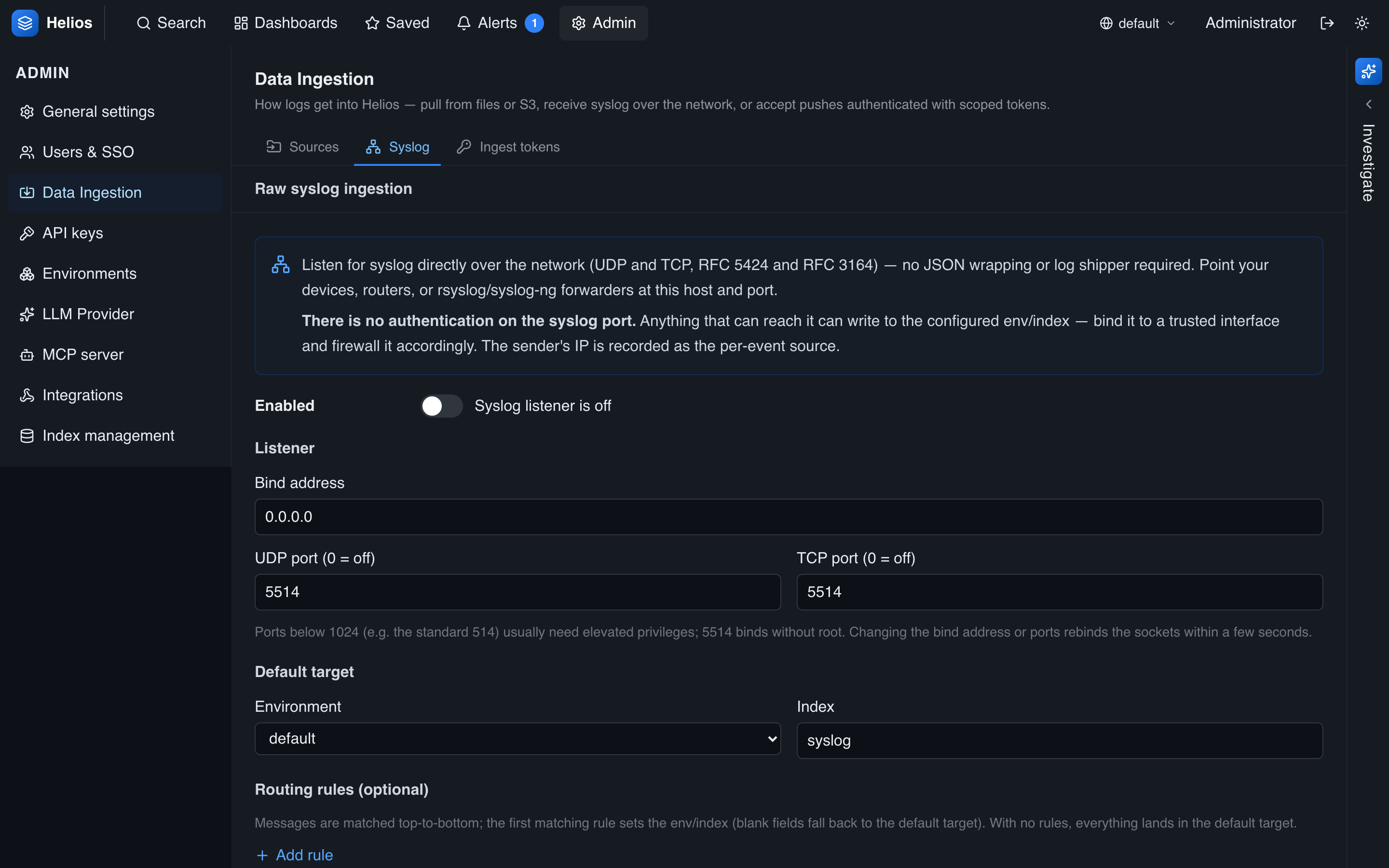

HeliosLogs can receive syslog directly over the network — no JSON wrapping or log shipper required. Point network devices, appliances, or an rsyslog/syslog-ng forwarder at it. Configure the listener under Admin → Data Ingestion → Syslog.

No authentication on the syslog port

Unlike the HTTP endpoints, the syslog listener has no token auth — anything that can reach the port can write to the configured env/index. Bind it to a trusted interface and firewall it accordingly. The sender's IP is recorded as the per-event source.

The listener

When enabled, HeliosLogs binds a UDP and a TCP listener. TCP uses RFC 6587 framing (octet-counting, or newline-delimited), so long messages aren't truncated; a single UDP datagram may carry several newline-separated lines.

Setting	Default	Meaning
Enabled	off	Whether the listener binds at all.
Bind address	0.0.0.0	Interface to bind.
UDP port	5514	UDP listen port (0 = off).
TCP port	5514	TCP listen port (0 = off).
Default environment	default	Where unmatched messages land.
Default index	syslog	Index for unmatched messages.
Routing rules	—	Ordered rules (below).

Ports below 1024 (e.g. the standard 514) usually need elevated privileges; 5514 binds without root. Changing the bind address or ports rebinds the sockets within a few seconds.

Port override per host

The --syslog-port flag (or HELIOS_SYSLOG_PORT) overrides the control-plane UDP and TCP ports — handy when running several instances on one host. Set it to 0 to disable the listener.

Parsed fields

Both RFC 5424 and RFC 3164 are parsed. HeliosLogs decomposes the priority into facility and severity and extracts the standard fields, all queryable like any other:

Field	Source
timestamp	The message timestamp.
message	The message body.
host	Hostname.
appname	APP-NAME (5424) or tag (3164).
procid	PROCID (5424) or PID (3164).
facility	Priority ÷ 8.
severity	Priority mod 8.

Anything that doesn't parse as syslog is preserved as a message.

Routing rules

Routes decide which (env, index) a message lands in. Each rule matches one field with one operator; the first matching rule wins, otherwise the default env/index applies. A rule with a blank env or index inherits the default.

Matchable fields: host, appname, facility, severity, message, source_ip.

Operator	Match
equals	Case-insensitive exact match.
contains	Case-insensitive substring.
regex	Regular expression (an invalid regex is skipped, not fatal).

For example:

• appname equals sshd → index ssh
• severity regex ^[0-3]$ (emergency…error) → env prod, index urgent
• anything else → the default env/index

Pointing a sender at HeliosLogs

rsyslog, forwarding all messages over TCP:

*.* @@helios.example.com:5514

(Use a single @ for UDP.) Then add routes in the admin UI to split traffic into the right indexes.
